Aluminum gassing axis convex key type

Aluminum gassing axis convex key type

 Product Information

To use:

Suitable for coating, cutting, printing, rewinding, composite, papermaking, bag making, plastic and other related mechanical shaft, release can effectively improve the work efficiency.

Structure features:

Shaft main body is made of high quality steel, chrome plated surface; Aluminum convex key, telescopic flexible; Configuration and high quality rubber bladder filling and exhaust gas mouth, good sealing effect, long service life; Removable shaft head, simple maintenance.

Relevant parameters:

Order project 1 "shaft parameters 2 "shaft parameters 3 "shaft parameters 6 "shaft parameters 12 "shaft parameters
1 Use paper tube diameter φ25mm φ50mm φ76mm φ150mm φ300mm
2 Before inflatable gassing axis diameter φ24mm φ48mm φ74mm φ148mm φ298mm
3 Before inflatable gassing axis diameter φ27mm φ52mm φ78-80mm φ153mm φ308mm

Ordering information:

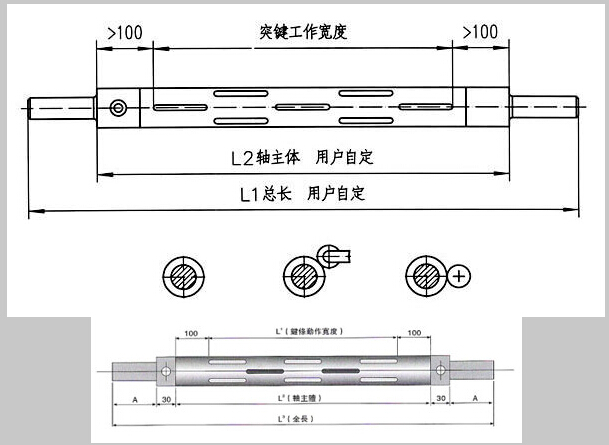

User gassing axis in order shall specify the type of the inflatable shaft, appearance size, mark shaft critical dimension tolerance level and order quantity. If you have special request, please contact with the company.
